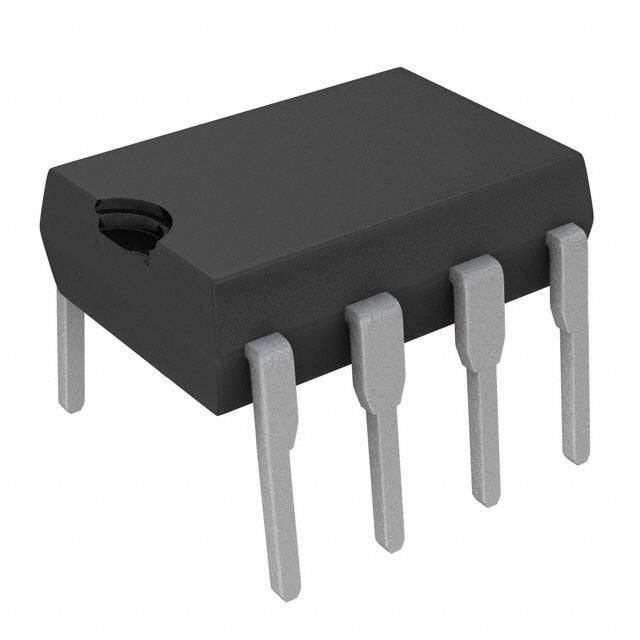

PIC12F510
75,87 TL
Stok Durumu :
Kategori
Stok Kodu
ACGKRTX8
Fiyat
1,80 USD + KDV
*10,28 TL den başlayan taksitlerle!!
| Mfr Package Description | 0.300 INCH, LEAD FREE, PLASTIC, DIP-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROCONTROLLER, RISC |
| ADC Channels | YES |
| Address Bus Width | 0.0 |
| Bit Size | 8 |
| Clock Frequency-Max | 8 MHz |
| CPU Family | PIC |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | 0.0 |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e3 |
| Number of I/O Lines | 6 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 2/5.5 |
| PWM Channels | NO |
| Qualification Status | Not Qualified |
| RAM (bytes) | 38 |
| ROM Programmability | FLASH |
| ROM (words) | 1024 |
| Seated Height-Max | 5.3 mm |
| Speed | 8 MHz |
| Sub Category | Microcontrollers |
| Supply Current-Max | 2 mA |
| Supply Voltage-Nom | 3 V |
| Supply Voltage-Min | 2.5 V |
| Supply Voltage-Max | 5.5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 9.27 mm |
| Width | 7.62 mm |
| Additional Feature | ALSO OPERATES AT MINIMUM 2V AT 4MHZ |
