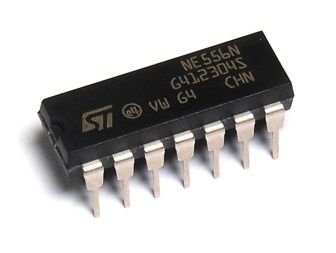

LM556 (NE 556 )
10,54 TL
Stok Durumu :
Kategori
Stok Kodu
FHLUY569
Fiyat
0,25 USD + KDV
*1,43 TL den başlayan taksitlerle!!
| Status | Active |
| Analog IC - Other Type | PULSE; RECTANGULAR |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Qualification Status | COMMERCIAL |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 16 V |
| Surface Mount | NO |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Length | 19.4 mm |
| Width | 7.62 mm |
| Additional Feature | CAN ALSO OPERATE AT 15V NOMINAL |
