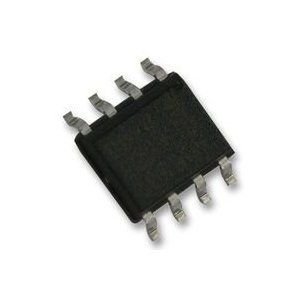

IR2106 - High and Low Side Driver (SMD)
74,22 TL
Stok Durumu :
Kategori
Stok Kodu
BEHNTWY6
Fiyat
1,75 USD + KDV
*10,06 TL den başlayan taksitlerle!!
| tatus | Discontinued |
| Interface IC Type | HALF BRIDGE BASED MOSFET DRIVER |
| High Side Driver | YES |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 2 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Output Peak Current Limit-Nom | 0.3500 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 245 |
| Power Supplies (V) | 15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | MOSFET Drivers |
| Supply Voltage-Nom | 15 V |
| Supply Voltage-Min | 10 V |
| Supply Voltage-Max | 20 V |
| Supply Voltage1-Min | 5 V |
| Supply Voltage1-Max | 620 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Turn-off Time | 0.2800 µs |
| Turn-on Time | 0.3000 µs |
| Length | 4.9 mm |
| Width | 3.9 mm |
| Additional Feature | FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT |
