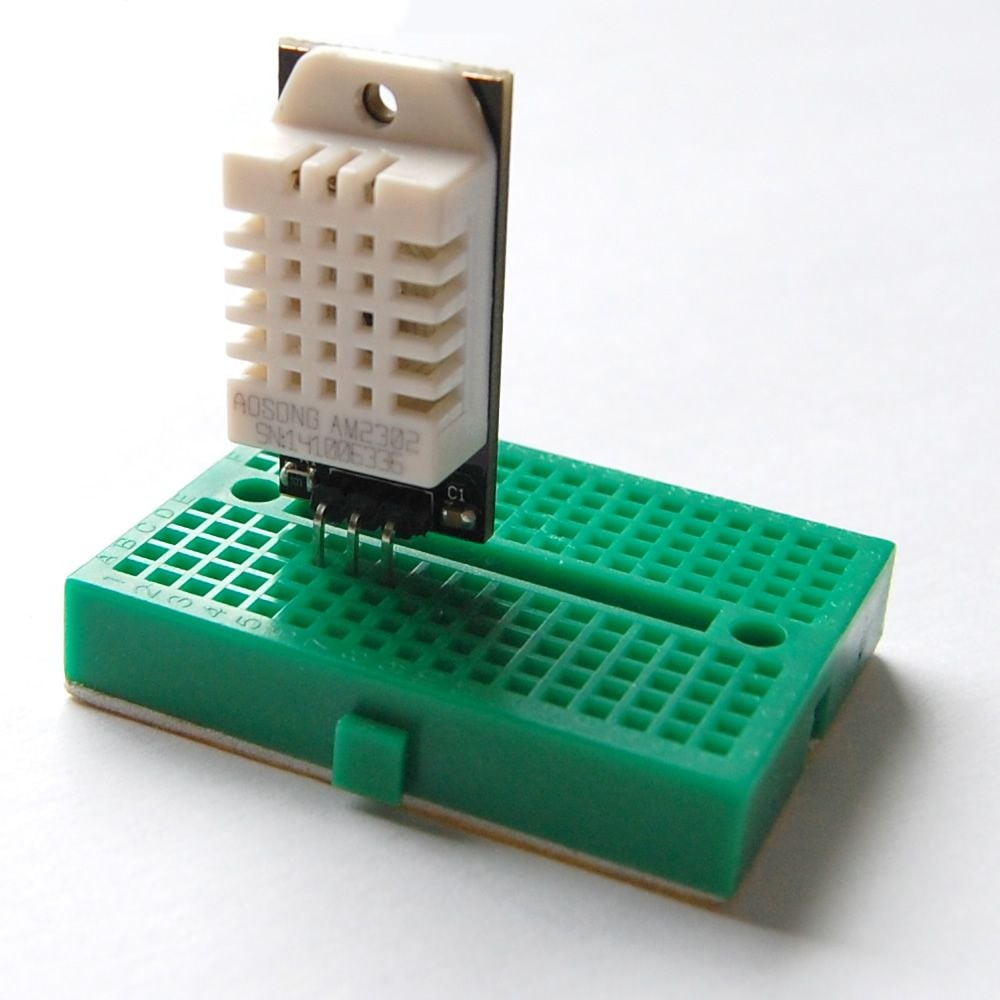

DHT22 Sıcaklık ve Nem Sensörü
144,32 TL
Stok Durumu :
Kategori
Marka
Stok Kodu
1A38-3
Fiyat
3,50 USD + KDV
*19,56 TL den başlayan taksitlerle!!
Description:
1. Size: 28.2 mm (length) * 13.1 mm (width) * 10 mm (high)
2. Weight: 6 g
3. Working voltage: 3 V - 5.5 V
4. The sensor models: the loose AM2302 temperature and humidity sensor
5. Signal output form: digital signal
6. Temperature measurement range: - 40°c to 80°c
7. Measuring accuracy: 0.5°c
8. The humidity measuring range: 0-100% RH
9. Measuring accuracy: 2% RH
10. Resolution: 16
11. With fixed screw holes, convenient installation and fixation. Diameter of 2.6 mm
Module interface description:
"+" : positive
"-" : the power of anode
"Out" : the microcontroller IO port
